Fabrication program

Length welded steel pipes and conduits up to 3600 mm diameter wall thickness up to 26 mm.

Irrigation water open canal control gates.


Roller Sluice Gates(RSG), Flap Valve and Movable Weirs.

Steel storage sheds, industrial buildings and other steel structure for purposes as in chemical plants and factories.


Vertical steel product storage tanks - fixed and floating roofs - for petroleum products; in capacities up to 60 thousand metric tons

and up to 60 meters diameter.


Pressure vessels  up to 20 bar and up to 3000 millimetres in diameter.

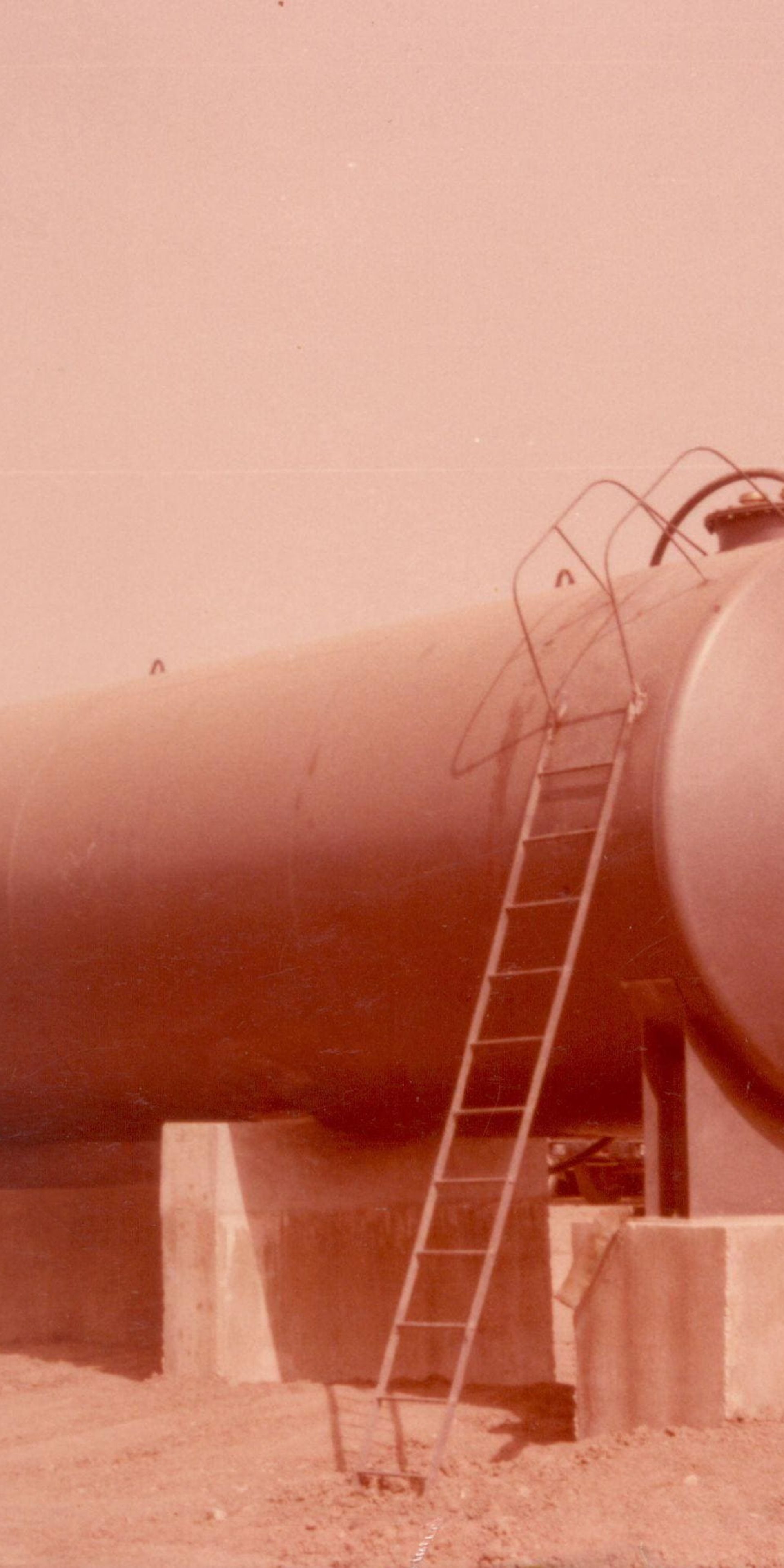

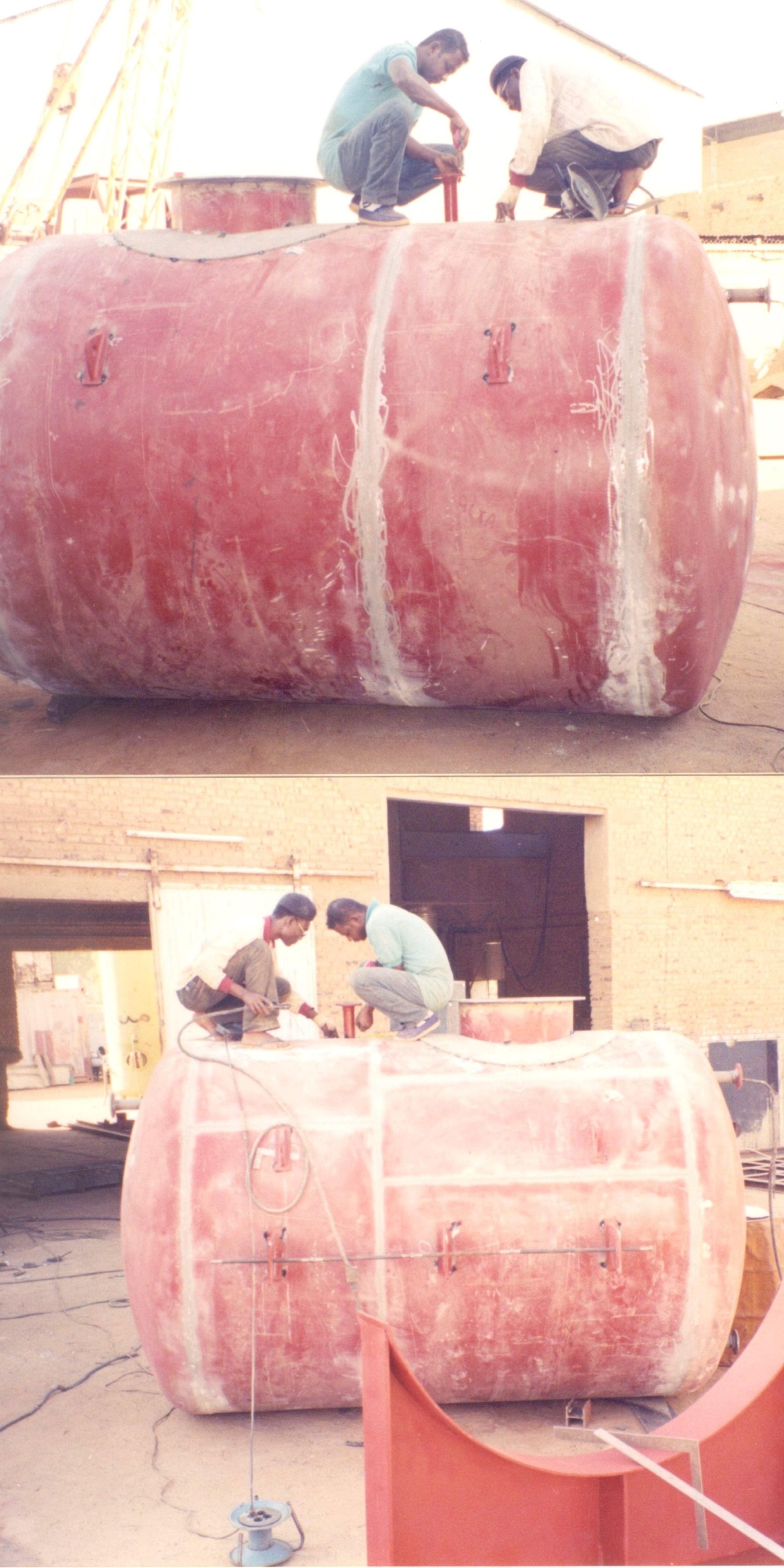

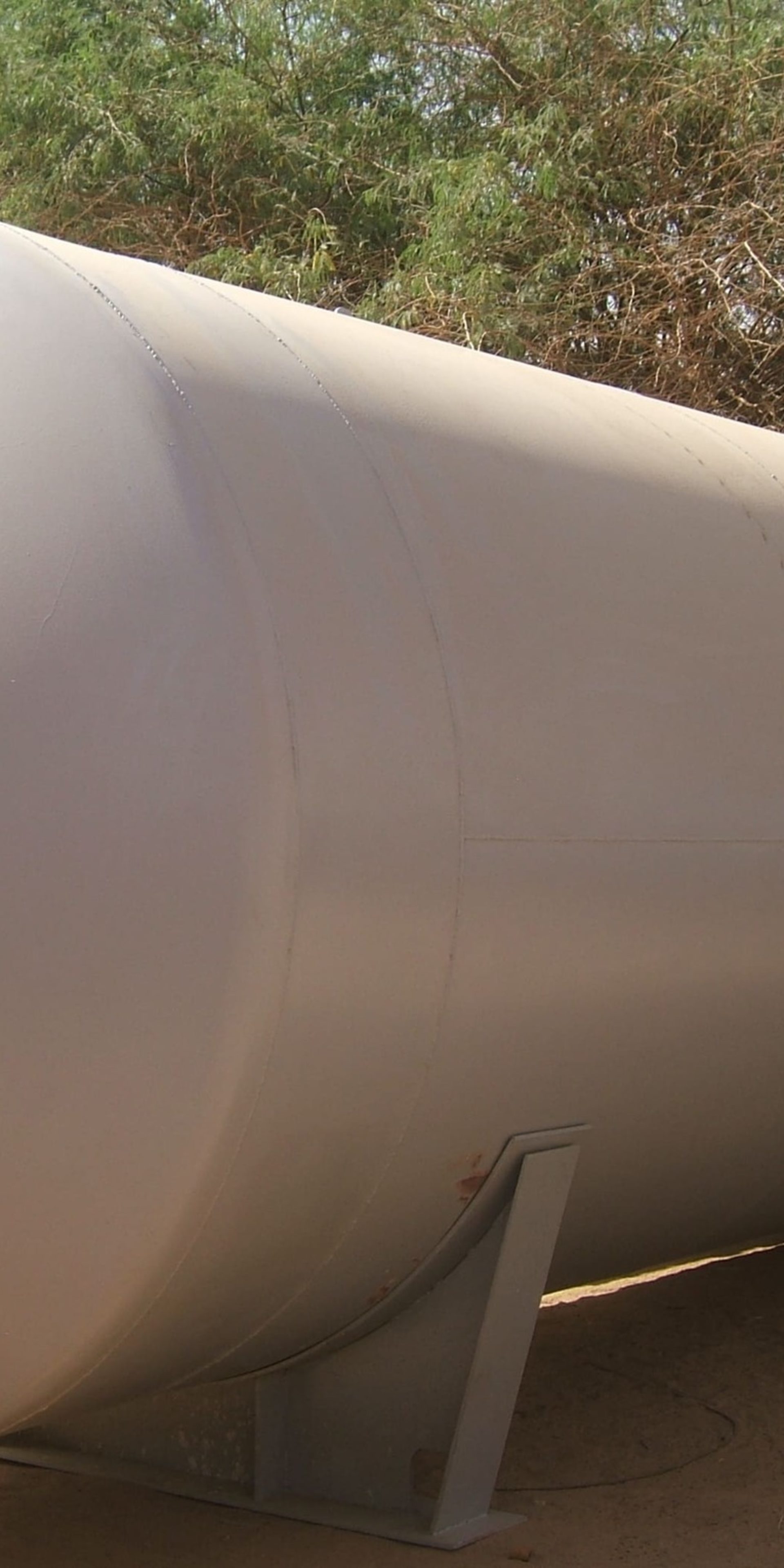

Horizontal steel product storage tanks from 1 up to 100 metric tons capacity for underground, and above ground installation.

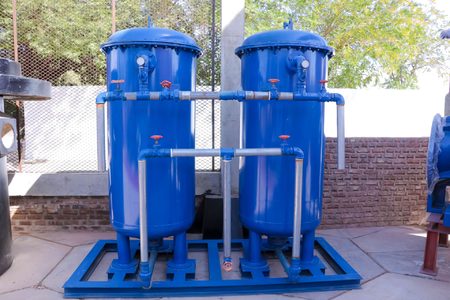

Water Treatment Plant

  • package plant for rural water supplies.
  • Designed to treat river, lake or well waters.
  • The best solution for villages, farms etc..
  • Easy permanent or temporary installation (transportable).



The water treated in three steps
      - coagulation
      - flocculation and filtration
      - disinfection

The dosing equipment consist of
      - mechanical drive using water flow
      - piston dosing pump
      - solution container
      -injection nozzle and small interconnection hoses


between container, pump and injection nozzle
 capacity of dozer 100cm3/m3
 capacity of container 60


Other electric driven pump are also available on request.

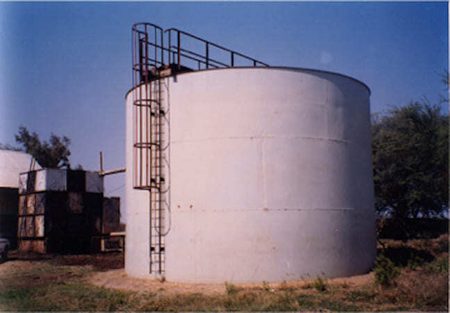

Clarifier for water treatment plants

Up to 400 m3/h


  • Mechanical water treatment plants
  • Drinking water treatment plants.
  • Sewage treatment Works.

General description of Flap Valves

Flap valves are water regulators designed to open with the flow of water out of a pipe, Prevent flooding and stop water back flowing up pipework .


Flap valve used to

  • Pump discharge control
  • Irrigation systems
  • Flood control
  • Water and sewage treatment plants

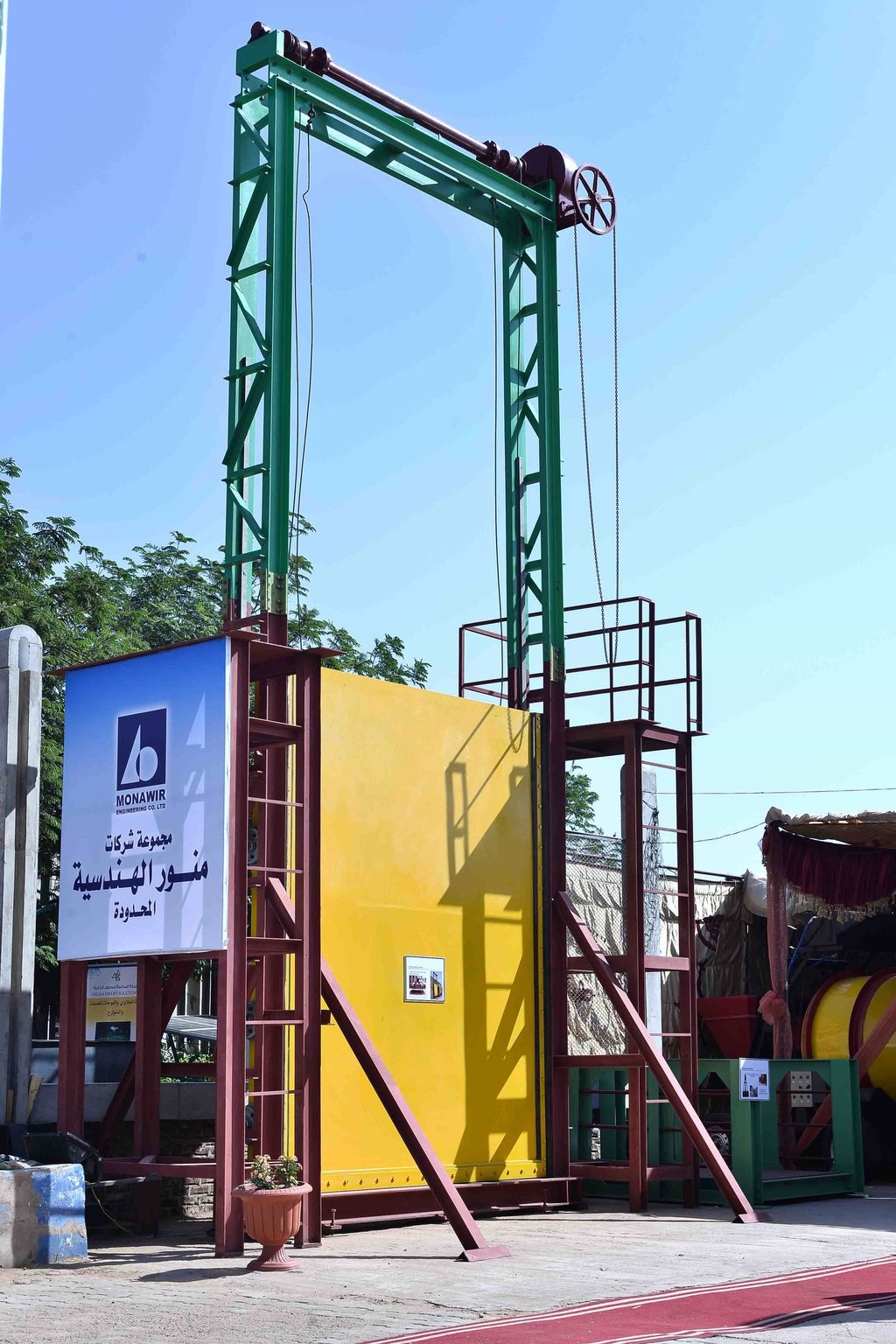

The movable weirs are water regulators of welded construction design, designed of two skin supported and stiffened structures sliding across the face of each other, one fixed and the other is movable, maintaining water level up-stream between the certain minimum and maximum level.


The thickness of steel skin is accordance with DIN standard 19704 & 19705 for underwater structures. All other structural members and steel sections used in the design are also complying with above German Standard. The movable part is bolted to U- sections steel to fit with the guide groove, again the movable part is bent to a certain angle allowing water to fall in low and stiffened with a steel angle 50×5 mm. Both weirs on the same frame; the fixed and movable run in guide channels carefully designed to allow for free movement and lending a strong anchor into brickwork or concrete forming the sides and bottom sill. The movable weir gate is operated through a geared—mechanical lifting system

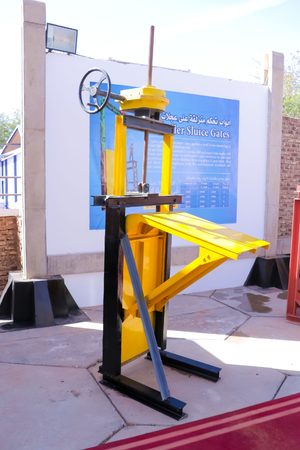

General description of Sluice Gate



The roller sluice gates are to closer against a steel frame consisting of left and right side and bottom rest.

The roller sluice gates are formed of standard U-section 200 as and equal iron angles 100*10 mm and gusset plates to stiffen the gate structure in one rigid structural unit covered in the front by a skin plate 8 mm thick according to your requirements, whoever in compliance with the international standard for under water structures this in the minimum 10 mm. the gusset plates shall also have a minimum thickness of 8 mm.


At the bottom of the gate bed and joining structurally with the side frames for guides , is the bottom rest(sill) upon which the roller sluice gates are to rest.

As described above this bottom rest adjusted to correct level and position through embedded parts mounted as shown in our drawings.

thickness of 8 mm.

At the bottom of the gate bed and joining structurally with the side frames for guides , is the bottom rest(sill) upon which the roller sluice gates are to rest.

As described above this bottom rest adjusted to correct level and position through embedded parts mounted as shown in our drawings .

Designed for sugar factories.

For transport the sugar cane from the field to the factory.

Box size  : 2.55 m * 2.67 m* 6.8 m

Total length : 9.28 m

Load : 14 ton

Sugar care trail with three axles – front axle with central pedestal pirot and goose neck , draw bar ,side tipping container . double leak  springs suspension with end  hangers and middle equilizer


Technical specification :

Overall  dimension                  9.28 m * 2.67 m * 3.47m

Container dimension                6.7 m * 2.45 m * 2.0m

Trail size                                 p 12.00  R 20

Pay load                                  10 tons

Gross weight                            6.8 tons

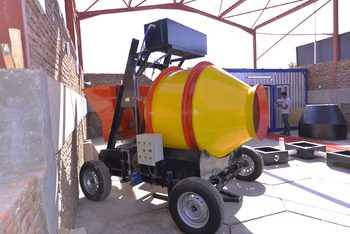

Concrete Mixer Maher

Is a device that homogeneously mix cement and aggregate such as sand or gravel, and water to from concrete a typical concrete mixer uses a revolving drum to mix volume works portable concrete mixers..

Portable concrete mixers may be powered by a gasoline engine, although it is more common that they are powered by electric motors using standard mains current ps.


Specifications:

Drum mixing capacity

500 L

Hopper filling capacity

570 L

Product mix per hour

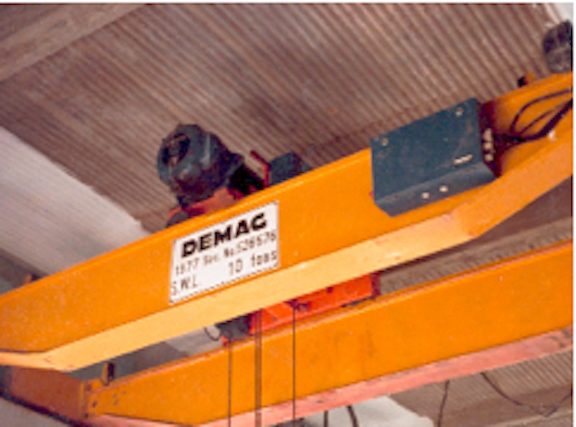

Supply, fabrication and erection of over head cranes up to 25 tons capacity

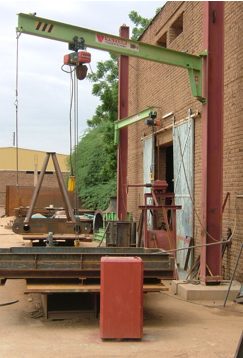

Supply, fabrication and erection of pole mounted cranes up to 8 tons capacity

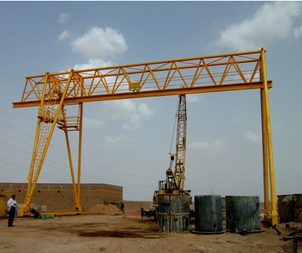

Fabrication and erection of yard cranes up to 20 m span and 15 tons capacity

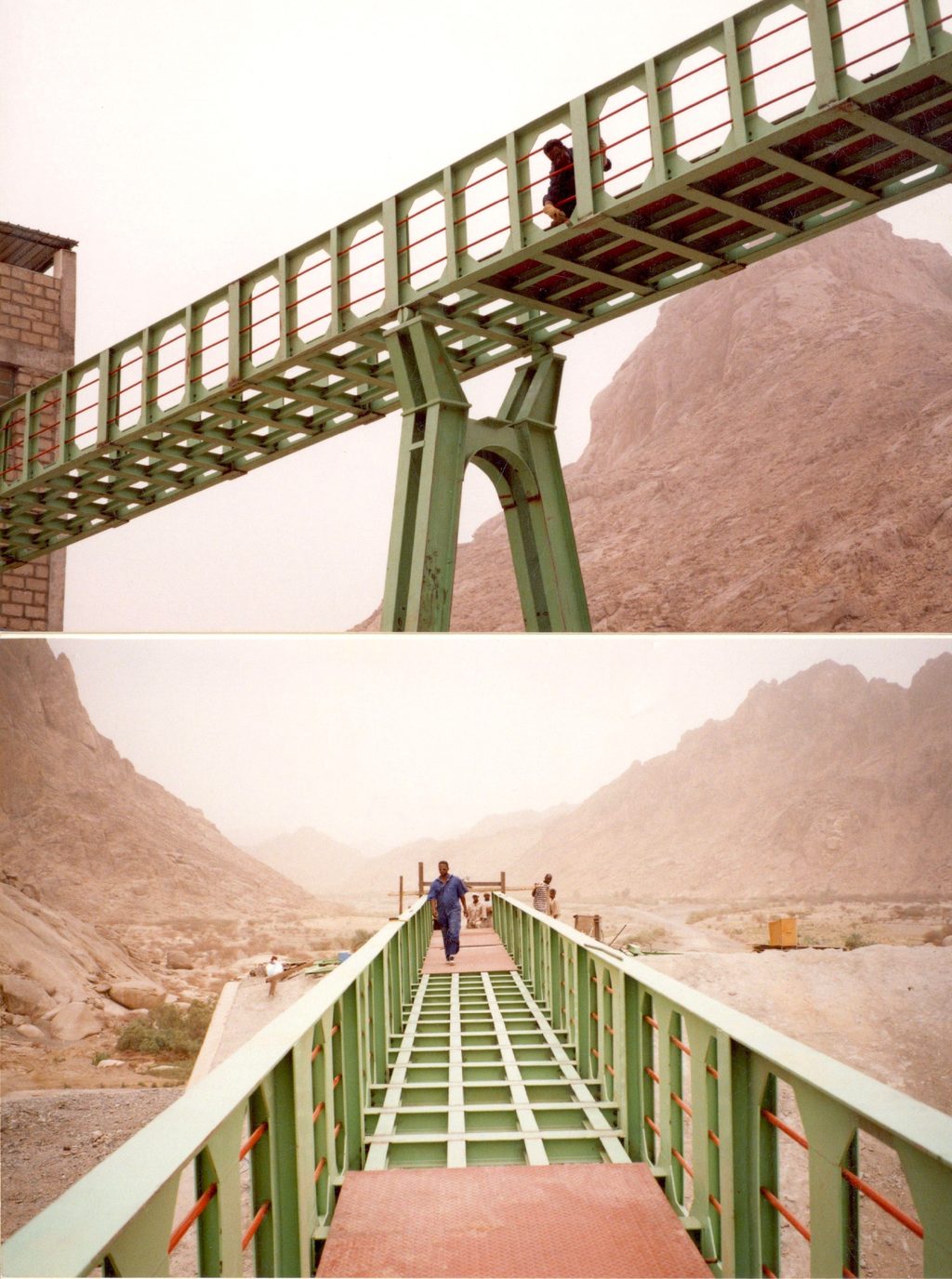

  • Fabrication and installation of 10 tons steel bridge .
  • Steel bridge sections .
  • Manufacturing & assembling test at our works .
  • Different diameters.
  • Wall thickness up to 26 mm
  • Length welded steel pipes and conduits up to 3600 mm diameter.

Above  and  under  ground tanks

  • Vertical and horizontal storage tanks - fixed and floating roofs
  • Pressure vessels up to 20 bar.

Pumps, Drives and Machines

  1. Pumps of all size and for all purposes; clean water, turbid Waters, irrigation, sewage, chemicals, petroleum, fire fighting etc.
  2. Diesel engines.
  3. Electrical generator sets and switch-gear.
  4. Electrical motors.
  5. Control panels, instruments and cables.

Steel, Metals and Chemicals

  1. Steels sheet plates, steel sections in all quality versions and to all standards.
  2. Cast iron and steel pipe-fittings and pipes to all sizes forms, specifications and standards.
  3. Cast iron and cast steel valves.
  4. Bolts and nuts and gaskets.
  5. Welding electrodes.
  6. Rubber Products.

Conveyor belts

  1. Flat belts, V-- belts .
  2. Rubber seals
  3. Rubber hoses

Workshop Equipment

  1. Workshop machines e.g. turning lathe.
  2. Steel forming, cutting & fabricating machines.
  3. Gas welding equipment.
  4. Electrical welding machines.

Handling Equipment and Tools

  1. Cranes, over-head, hydraulic jacks and lifting tackles.
  2. Electrically driven tools, pneumatic, hydraulic, hand tools, and tools for special purposes.

Electrical Engineering Services

  1. Diesel power stations.
  2. Industrial plants.
  3. Electrical switch-gear and Control Boards.

Civil Engineering

  1. sheds etc.
  2. Steel structures, industrial buildings.

Engineering program

Products Transfer Engineering


  1. Pumping stations for mineral oil, chemical products, gas, drinking water sewage and flood irrigation purposes.
  2. Truck loading and unloading stations for petroleum products and fuelling stations for air-fields and others.
  3. Tank farms for various purposes and products.
  4. Fire fighting systems and sprinkler protection plants.


Environmental Engineering


  1. Mechanical water treatment plants
  2. Drinking water treatment plants.
  3. Sewage treatment Works.
  1. Electrical Engineering Services


  1. Diesel power stations.
  2. Industrial plants.
  3. Electrical switch-gear and Control Boards.


Civil Engineering


  • sheds etc. Steel structures, industrial buildings

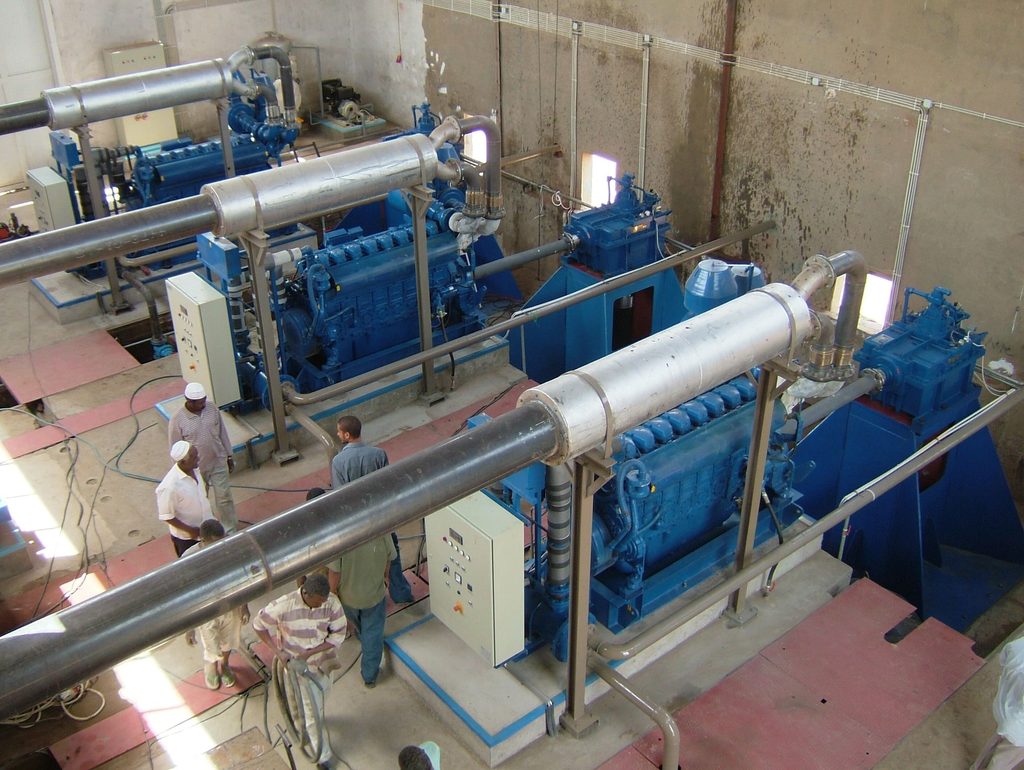

Previous projects

Al Turaa El Khadra pump station

Closed motor submersible pumps, head 5.5m

 discharge 4 x 1.0 m3/sec.

  • Design, Supply of pumps Electrical equipment
  • Erection of Pumps and Electrical Equipment
  • Fabrication and supply of all facilities.

Hurga pumps and accessories.

On the Blue Nile

Supply and installation of pump sets

Al Burgag project pump sets on three pontoons

  • Design and manufacture of pontoons.
  • Erection of pumps and electrical equipment.
  • Fabrication and supply of all facilities.

Gadarif water corporation

Supply and erection including soft start Panels for pump size 3*0.2 m3/s head 160m horizontal split double suction

Assalaya Booster station

Supply , installation & commissioning

of  3 pump sets

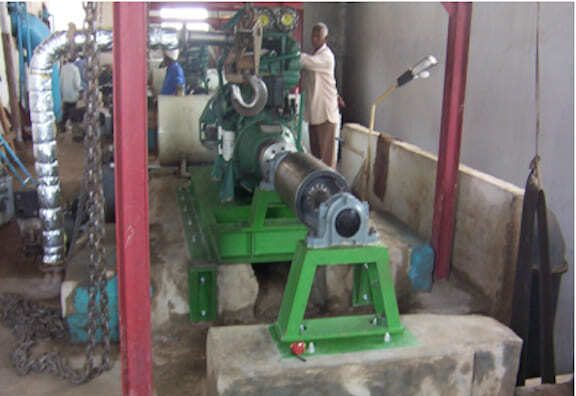

Nureddin pump station
On the blue nile

Supply and installation of
pump sets.

Guneid Sugar Company Agricultural Project On the Blue Nile

Pump size 2 x 4.5 m3/sec. and 2 x 3.5 Vertical Double Entry  Axial Split Casing Pumps, head 24m

  • Supply & erection of Pumps and Electrical Equipment
  • Fabrication and of all facilities
